3D prints and kits by Loco Remote

Some of our loco and wagon kits are freelance while others are models of the real thing.
Ant, 'Issing Sid, Gerald Yorke, Amberley 16303, Tom and Wasp are with the original locos.

Battery and electric locos

Clayton CB1.75FC-7 Folding Cab

Clayton CB1.75-7

Amberley Brush 16303
Hythe Pier Brush Gerald Yorke
Llechwedd Quarry The Eclipse


Petrol and diesel locos

Hibberd Planet Ashover

Dodding's Farm watercress

Bredbury Sewage Works Reliance

Planet 6hp Motor Driven Truck

Motor Rail 10hp

Motor Rail 12hp

Huddy freelance petrol

Steam and compressed air locos

Crewe Works Tiny

Great Laxey Mine Ant

'Issing Sid

No longer available locos

Gravity Griff motorised slate wagon

Tipping Tim motorised tipper

Hellingly Hospital

Free track files

Hudson and standard track

Wagons

Hudson passenger car

Brake chassis for Binnie wagons

Llechwedd slate rubble wagon

Robert Hudson (Raletrux) U skip

Hudson Rugga and tippler

Rotary tippler and wagon




Free 32mm and 45mm gauge track

Free 3D printable small radius track stl files for your personal use only. There are hundreds of pieces including 5 different radius curves, points, diamond crossings, buffers, turntables and even rack track with pinions!

Click to see videos of the track in use. Micro layout video, Video 1, Video 2 and Video 3

There are 3 mix and match downloadable versions.
  • New Hudson type track with pressed sleepers and profile rail. Make sure you read the README.TXT file as there are 3 versions provided for different printer tolerances.
  • Original Version 1 contains all pieces with tight joins suitable for well adjusted printers
  • Original Version 3 with looser joins suitable for most printers - does not yet contain specials pieces like turntables
Print at 100% (i.e. as supplied) for 32mm gauge, 140% for 45mm gauge, 200% for 2.5 inch gauge, 280% for 3.5 inch gauge or 400% for 5 inch gauge. You can even scale it down to 16.5mm and 9mm gauge though this needs careful printing. The middle photo shows 5 inch down to 9mm gauge.

If you don't have a 3D printer and would like us to print some 32mm gauge track for you up to around 2 x 4 feet for a modest cost then please contact us by email. The oval of 32mm gauge Hudson style track with two points, sidings and buffers in the lower photo is available for just £30 including UK p&p. If you fancy something different just send us a sketch plan and we can price this for you. We prefer not to offer 45mm gauge printed track. It is almost 3 times the weight and cost of 32mm and we do not have the printer capacity. Sorry!

Hibberd Planet Ashover loco kit

This 16mm scale 32-45mm gauge kit is based on Hibberd Planet 3307 supplied to the Ashover Light Railway in 1948. It subsequently moved to the Ffestiniog Railway.

Click to see a video of Ashover and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

Dodding's Farm watercress loco kits

These are small 16mm scale 20-32mm gauge locos and wagons. The unique 18 inch gauge originals worked for many years transporting watercress at Dodding's Farm at Bere Regis in Dorset.

Click to see a video of the watercress locos and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

Bredbury Sewage Works loco kit

This is a small 16mm scale 32mm gauge loco. Bredbury Sewage Works put a Reliance auto truck with a JAP petrol engine onto a skip chassis for light use. Following restoration, Bredbury now lives at the West Lancashire Light Railway

Click to see a video of Bredbury and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

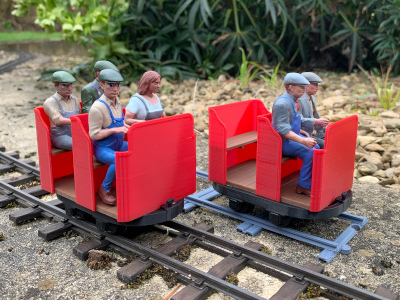

Hudson passenger car kit

Simple passenger car bodies on Hudson frames. Available in 16mm scale 32mm or 45mm gauge at £30 for two, and 7/8ths inch scale 32-45mm gauge at £40 for one. Prices include UK postage.

Click to see a video of the passenger cars and to read the instructions. Please contact us by email if you are interested in purchasing some.

Planet 6hp Motor Driven Truck kit

This is a small 16mm scale 32mm gauge or 7/8ths inch scale 32-45mm gauge loco. The original was introduced by F C Hibberd & Co Ltd in the late 1920s as a light locomotive to provide relatively cheap motive power for small industrial railways. The standard model had a flat platform with a wooden box or 1 cubic yard tipping body available as options.

Click to see a video of the Planet and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

The Eclipse loco kit

The Eclipse is a 16mm scale 32mm gauge model of a very unusual loco. The original started life as a steam loco, an 0-4-0 ST built by W.G. Bagnall in 1895 for the Llechwedd slate quarry. It was converted to an electric loco by GEC in 1927 and renamed The Eclipse. Power was supplied from a pair of overhead wires.

Click to see a video of The Eclipse and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

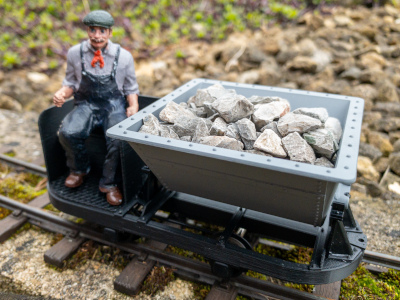

Llechwedd rubble wagon kit

These 16mm scale 32mm gauge wagons were ubiquitous at the Llechwedd slate quarry and are an ideal match for The Eclipse or other quarry locos. They are available with single or double flanged wheels. A rake of four 16mm scale wagons is available for £40 including wheels, axles and UK p&p. 2 ton Ffestiniog slate wagons are also available for the same price.

Click to see a video of The Eclipse with wagons and to read the instructions. Please contact us by email if you are interested in purchasing some.


Brake chassis kit for Binnie Hudson tipper and bolster wagons

These 32mm or 45mm gauge kits enable you to convert the very popular 16mm scale Peter Binnie tipper and bolster kits to braked versions. They have been designed in cooperation with Peter Binnie. The kits contains a replacement frame, brake parts and brass rods only. There are three versions as shown. Two kits of any mix of versions are £12 including UK p&p.

Click to read the instructions. Please contact us by email if you are interested in purchasing some specifying gauge and versions required.

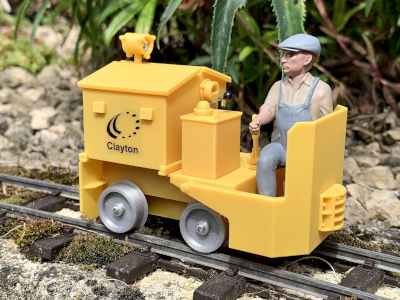

Clayton CB1.75FC-7 battery loco kit

This is a small 16mm scale 32mm gauge or 7/8ths inch scale 32-45mm gauge loco with a folding cab. The original was frequently used underground with the cab folded to fit down a shaft. As an underground loco it perfectly complements our Robert Hudson (Raletrux) U skips.

Click to see a video of the Clayton CB1.75FC-7 and to read the 16mm scale instructions or 7/8ths inch scale instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.


Clayton CB1.75-7 battery loco kit

These locos are based on Tom and Hazel at the Steeple Grange Light Railway and Wasp at the Great Laxey Mine Railway.

The 16mm scale locos in the top photo can be built as Tom or Hazel in either 32mm gauge (red and grey in photo) or 24mm gauge (yellow and blue) to emulate the 18 inch original locos at Steeple Grange. As tunnelling locos they perfectly complement our Robert Hudson (Raletrux) U skips.

The 7/8ths inch scale locos are available in 32mm or 45mm gauge as Tom (orange), Hazel (yellow) and Wasp (green) in the bottom photo.

Click to see a video of the Clayton CB1.75-7 and to read the 16mm scale instructions or 7/8ths inch scale instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

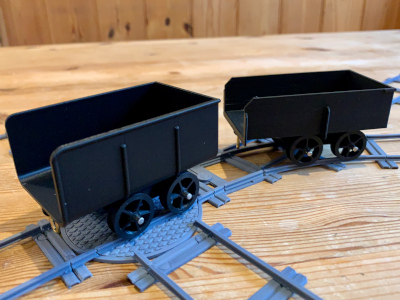

Robert Hudson (Raletrux) U skip kit

These small 16mm scale 32mm gauge wagons are based on former tunnelling skips at Amberley Museum. They go well with small locos such as our Clayton, Motor Rail 10/12hp and Huddy. A rake of six 16mm scale U skips is available for £60 including wheels, axles and UK p&p. They are also available in 7/8ths inch scale 45mm gauge at £80 for a rake of three skips.

Click to see a video of the U skips and to read the instructions. Please contact us by email if you are interested in purchasing some.


7/8ths inch scale wagon kits

These 7/8ths inch scale Hudson style wagons are gauge adjustable between 32-45mm. There are three versions currently available - a narrow V skip, a wide Rugga V skip and a tippler. They are available for £30 each including wheels, axles and UK p&p or any mix of four for £110.

Click to see a video of the wagons . Please contact us by email if you are interested in purchasing some.

Motor Rail 10hp loco kit

This is a small 16mm scale 32mm gauge or 7/8ths inch scale 32-45mm gauge loco based on works number 26007 when it was fitted with a cab at the North Gloucestershire Railway. It has since been sold on privately and the cab removed.

Click to see a video of the Motor Rail 10hp and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

Motor Rail 12hp loco kit

This is a small 16mm scale 32mm gauge or 7/8ths inch scale 32-45mm gauge loco based on works number 26014 when it was working at Richardson's Moss Litter Co. Ltd Solway Moss Works near Gretna and as originally built.

Click to see a video of the Motor Rail 12hp and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

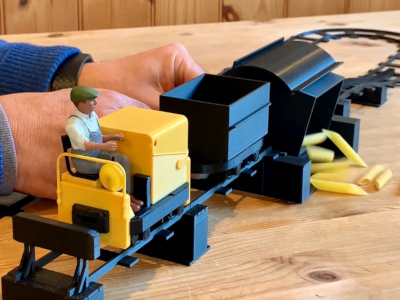

Rotary tippler kit

This is a motorised 16mm scale 32mm gauge rotary tippler and wagon. The tippler is designed so that a small locomotive like the Motor Rail 12hp or Huddy and wagons can drive straight through it, with the wagons stopping to unload.

Click to see a video of the rotary tippler and to read the instructions. We make a very limited number of tipplers in small batches. Please contact us by email if you are interested in purchasing one.

Crewe Works Tiny loco kit

Tiny is a 7/8ths inch scale model of the first 18 inch gauge locomotive designed by John Ramsbottom and built in 1862 for the Crewe Works. Four similar locomotives followed, one of which, Pet, is now at the National Railway Museum in York. The model is available in 32mm gauge only.

Click to see a video of Tiny and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

Amberley Brush 16303 loco kit

This is a small 16mm scale 32mm gauge or 7/8ths inch scale 32-45mm gauge loco based on Brush 16303 now at Amberley Museum. The loco was originally built for the Ministry of Munitions in 1917 and worked in HM Explosives Factory in Queensferry.

Click to see a video of Amberley 16303 and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

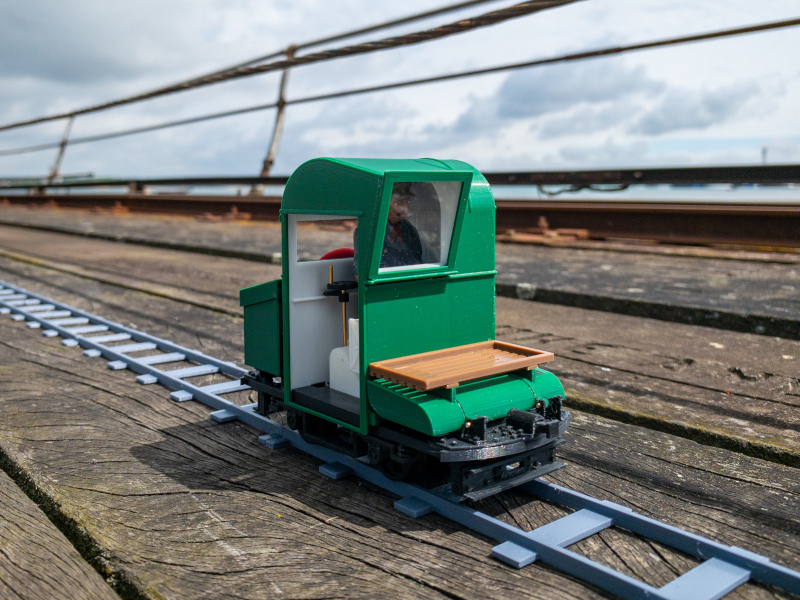

Hythe Pier Brush 16307 Gerald Yorke loco kit

Gerald Yorke is small 16mm scale 32mm gauge loco based on Brush 16307 on the Hythe Pier Railway. The loco was originally built for the Ministry of Munitions in 1917 and worked at the Avonmouth mustard gas factory. It came to Hythe in July 1922.

Click to see a video of Gerald Yorke and to read the instructions. We make a very limited number of tipplers in small batches. Please contact us by email if you are interested in purchasing one.

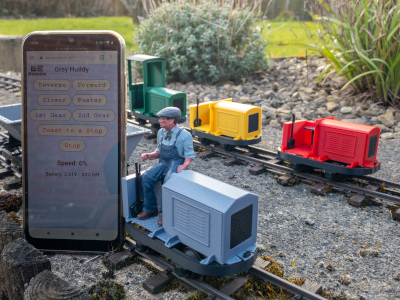

Huddy freelance petrol loco kit

Huddy is a small 16mm scale freelance petrol loco on a 32mm or 45mm gauge Hudson tipper type chassis in a variety of body styles and colours. It can haul a few loaded tippers as well as negotiating tight 2.9 inch radius curves. A 7/8ths inch scale 32-45mm gauge version is also available.

Click to see a video of Huddy and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

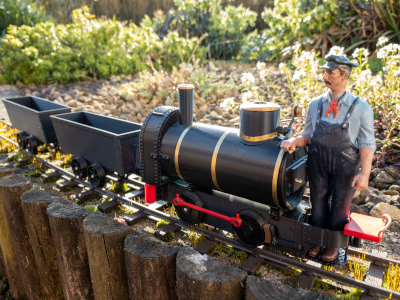

Great Laxey Mine Ant/Bee loco kit

Ant is a 7/8ths inch scale model of the unique Great Laxey Mine Railway locomotive together with matching lead ore tubs. It is available in 32mm gauge only.

Click to see a video of Ant and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

'Issing Sid compressed air loco kit

Sid is a 16mm scale model of the replica Lishman & Young 2’-0” gauge compressed air locomotive designed by Roy Etherington and constructed at Statfold. It is available in 32mm gauge only. It is a small, light, 4 wheel drive loco just 116mm long capable of pulling a few skips, rather like the prototype.

Click to see a video of 'Issing Sid in action and to read the instructions. We make a very limited number of locos in small batches. Please contact us by email if you are interested in purchasing one.

Gravity Griff motorised Ffestiniog Railway 3 ton slate waggon kit

Gravity Griff is a model of a Ffestiniog Railway 3 ton iron frame slate waggon with brakes. It has a hidden motor, controller and sound card to simulate a gravity train. It is available in 16mm scale 32mm gauge and 7/8ths inch scale 45mm gauge.

Click to see a video of Griff and to read the instructions. This kit is no longer available.

Tipping Tim motorised tipper kit

Tipping Tim is a self propelled remote controlled tipper that has the skip completely free to fill and tip. It is available in 32mm and 45mm gauge. Tim is not a true scale model and works equally well with a 16mm or 7/8ths inch scale driver and is ideal for further customisation! Tim is sized to be a match to the standard Binnie tipper.

Click to see a video of Tipping Tim in action and to read the instructions. This kit is no longer available.

Hellingly Hospital Railway loco kit

1:30 scale (10mm:foot) 32mm gauge model of the unusual standard gauge overhead electic loco that served Hellingly Hospital. Designed using the plans by Peter Harding in his book on the railway. Click to see a video of Hellingly in action. This kit is no longer available.
